Basic Info
Model No.: HY-CNC101
Product Description
Automatic Screen Printing Machine > Automatic Bottle Screen Printing Machine > nail polish bottle screen printer CNC screen printer

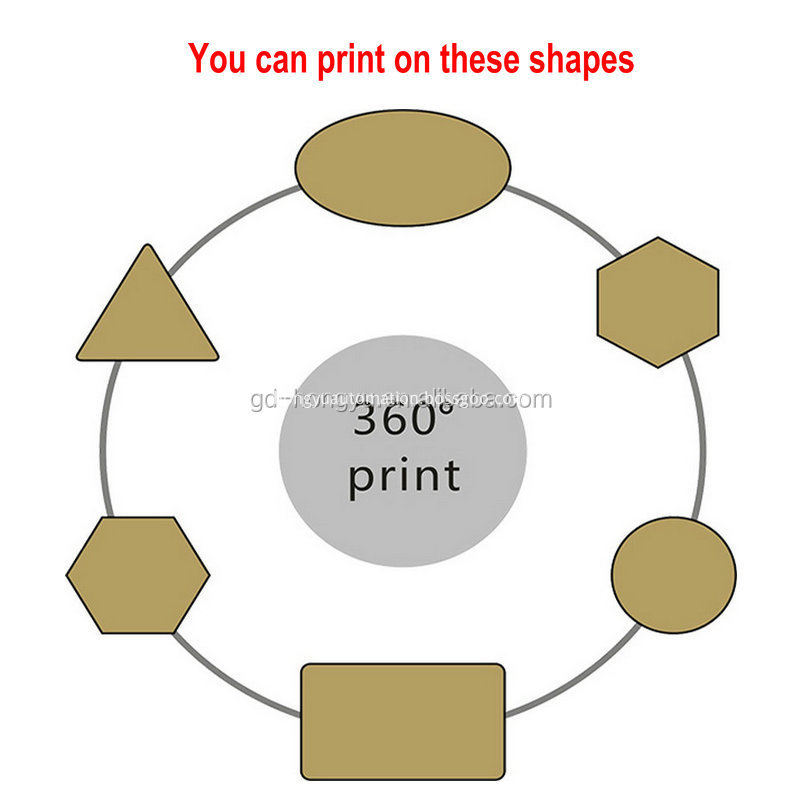

Square bottle,oval bottle,hexagon bottle screen printer, all CNC servo screen printing machine
This 1 color UV silkscreen printing machine well designed to print round, oval and square shape plastic bottles, glass bottles, and metal bottles. Such as cosmetic bottle, water bottle, sport bottle, milk bottle, plastic cup, silicone sealant tube, engine oil bottle, lube filter, wine bottle, etc. As the bottle printing machine manufacturer,
Product Description
1.For round and flat substrate design, the structure is simple and reasonable adjustment convenient and quick, stable and reliable operation. 2.Integrated synchronous automatic feeding, automatic lifting printing and UV curing and other functions, greatly improve the printing efficiency, printing speed up to3000- 4000/hr. 3.Through the touch screen display operation easy to achieve man-machine dialogue, make the operation more handy. 4.With a round bottle pre positioning function, so that the printing process is more efficient and more accurate 5.Through electronic sensors to achieve "no parts not printing", low pressure alarm and other automatic monitoring functions. 6.The whole machine electrical components and control system are imported from Germany and Japan, to ensure the stability of the printing quality. 7.According to the customer's special requirements for their products, specially designed and tailored equipment.







Specification
Model NO.: | HY-CNC-101 |
Round container size: | Diameter: φ10-100mm, Height: 30-260mm |
Round container max. print area: | L 260 x W220mm |
Oval container size: | R: 10-250mm, Height: 30-260mm |
Oval container max. print area: | L 120 x W220mm |
Drive: | Mechanical Driven |
Control system: | OMRON PLC & Touch Screen |
Max. printing capacity: | 70 pcs/min |
Registration tolerance: | +/- 0.2 mm |

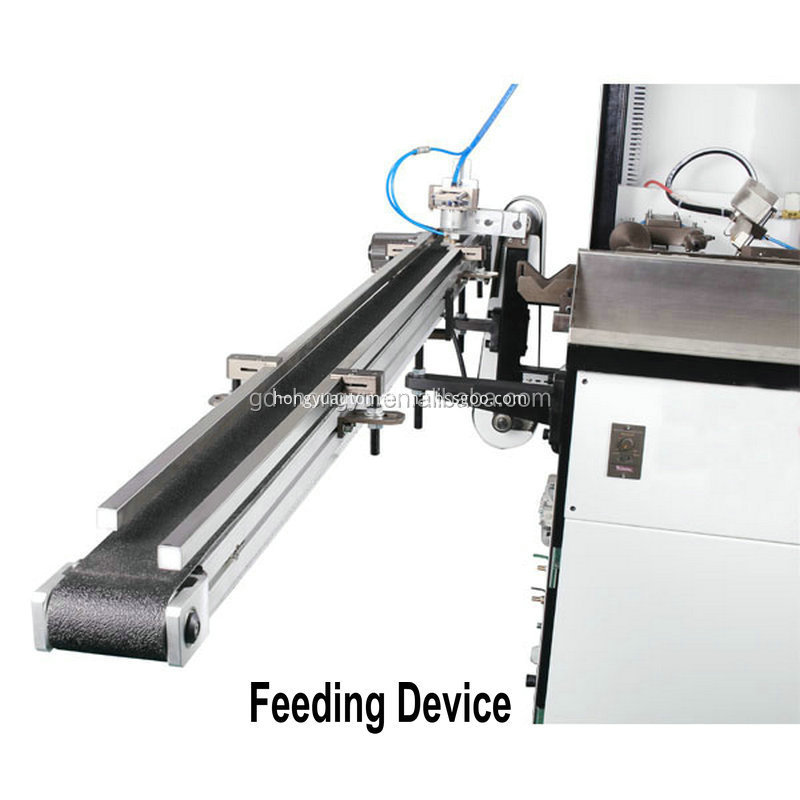

Infeed conveyor: | 1 unit, length: 2 meters |
Deionizing device: | 1 unit |

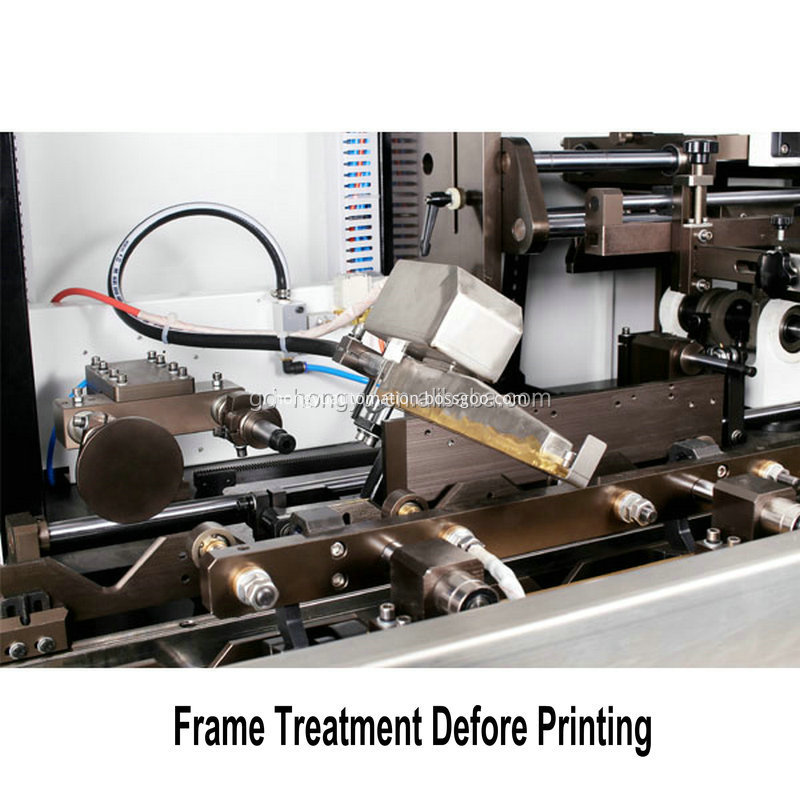

Flame treating system: | 1 unit, LP gas |
Motor: | ITALY MOTOVARIO |
Print head: | 1 unit |
UV system: | 1 unit intelligent UV system, 5KW per each |

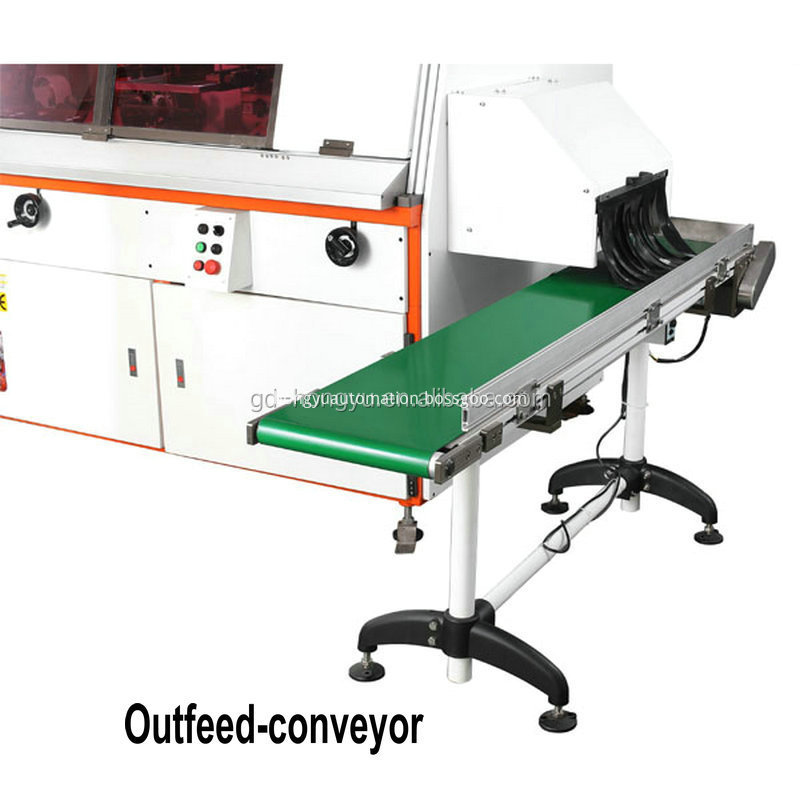

Outfeed conveyor: | 1 unit, Length: 2 meters |
Frequency Converter: | OMRON |
Pneumatic parts: | FESTO or SMC |
Electrical: | 380V 3phase 50Hz |
Air requirement: | 5-7 bar |
Air consumption: | 85 liter/ minute max. (per color) |
Power consumption: | 5.4 KW/color x 1 |
Machine size(LxWxH): | Main machine: 2300x1800x1700mm |
Weight: | 1600 KG |
*Specifications are subject to change without prior notification |

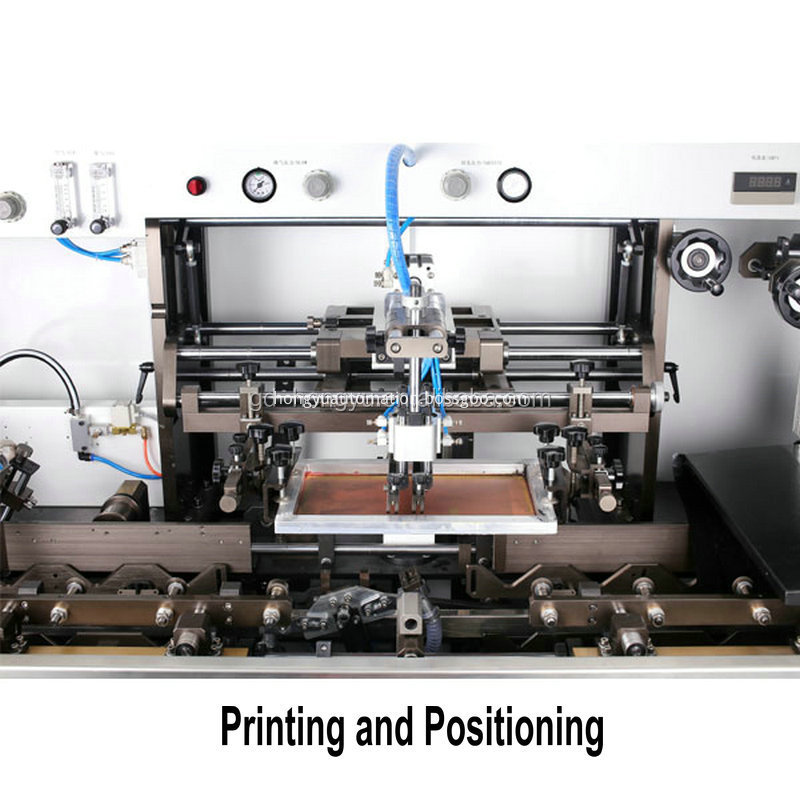

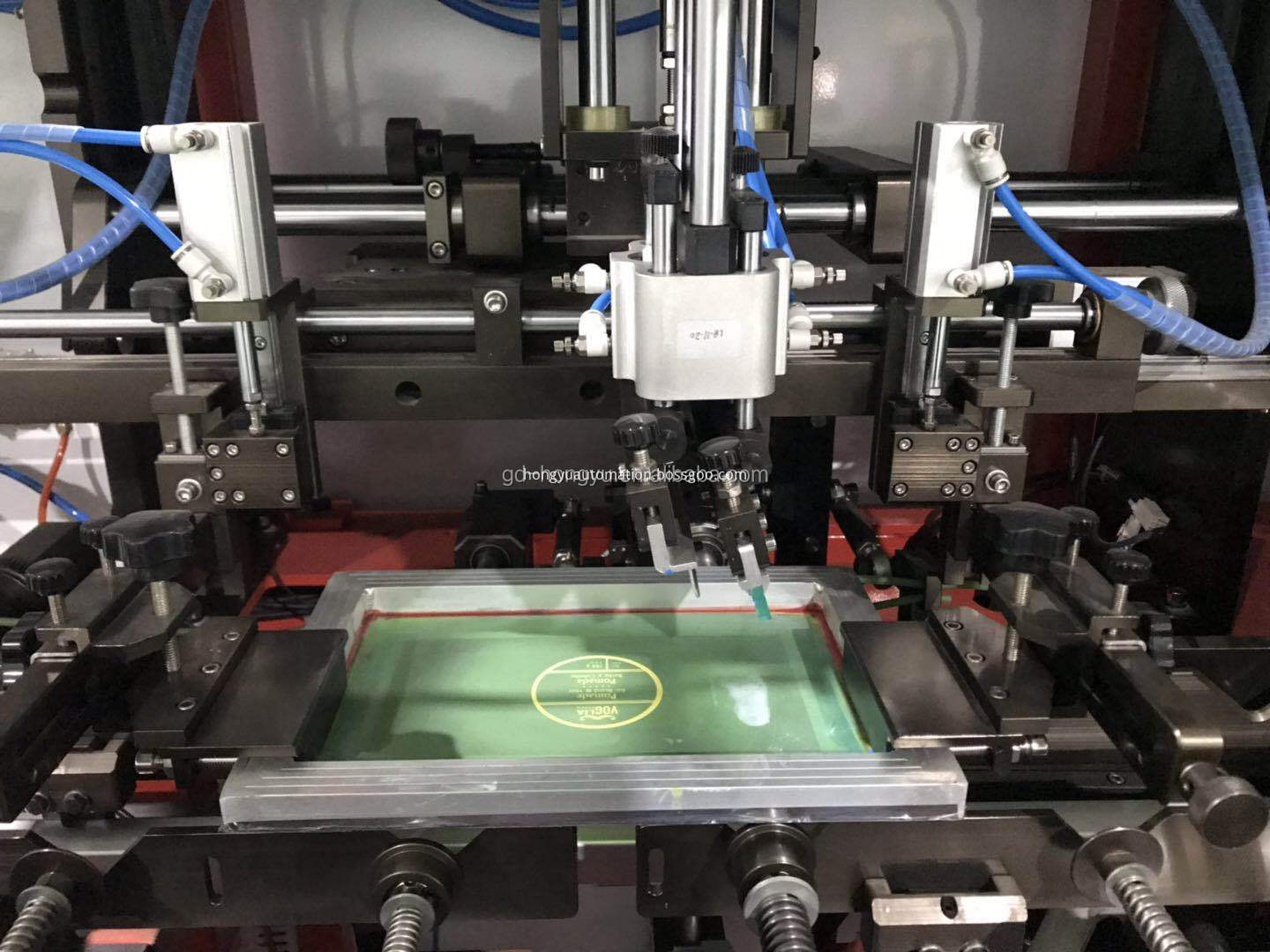

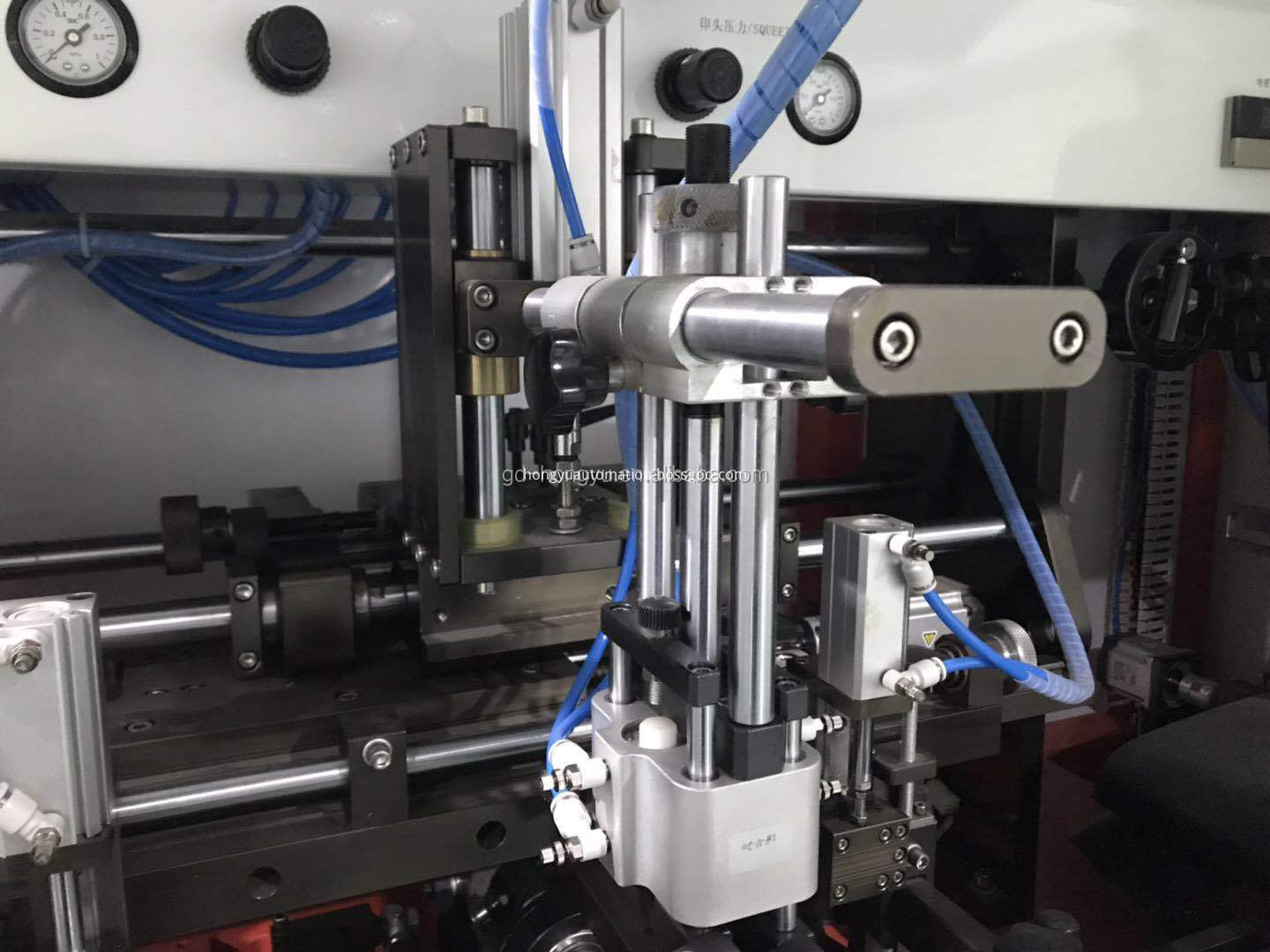

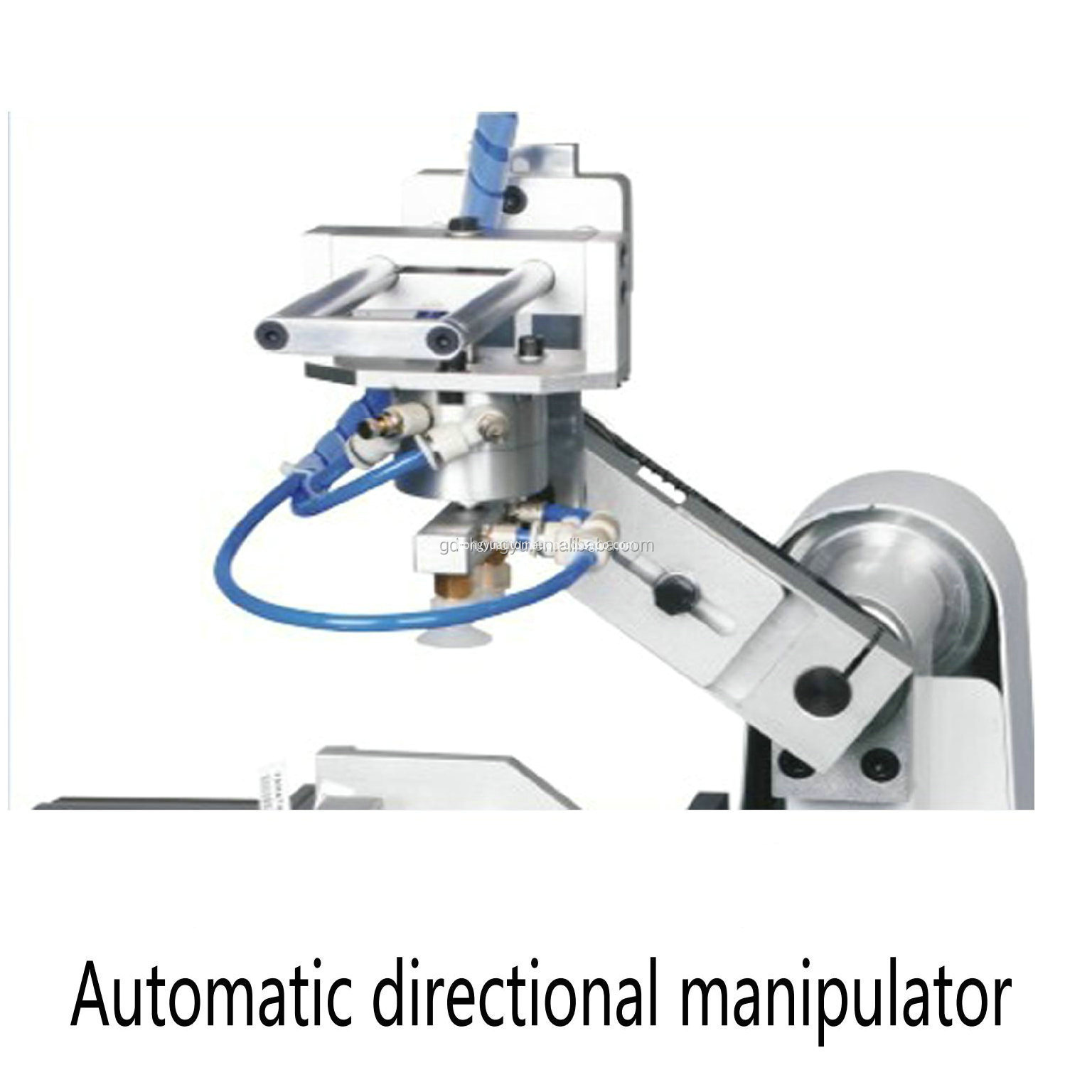

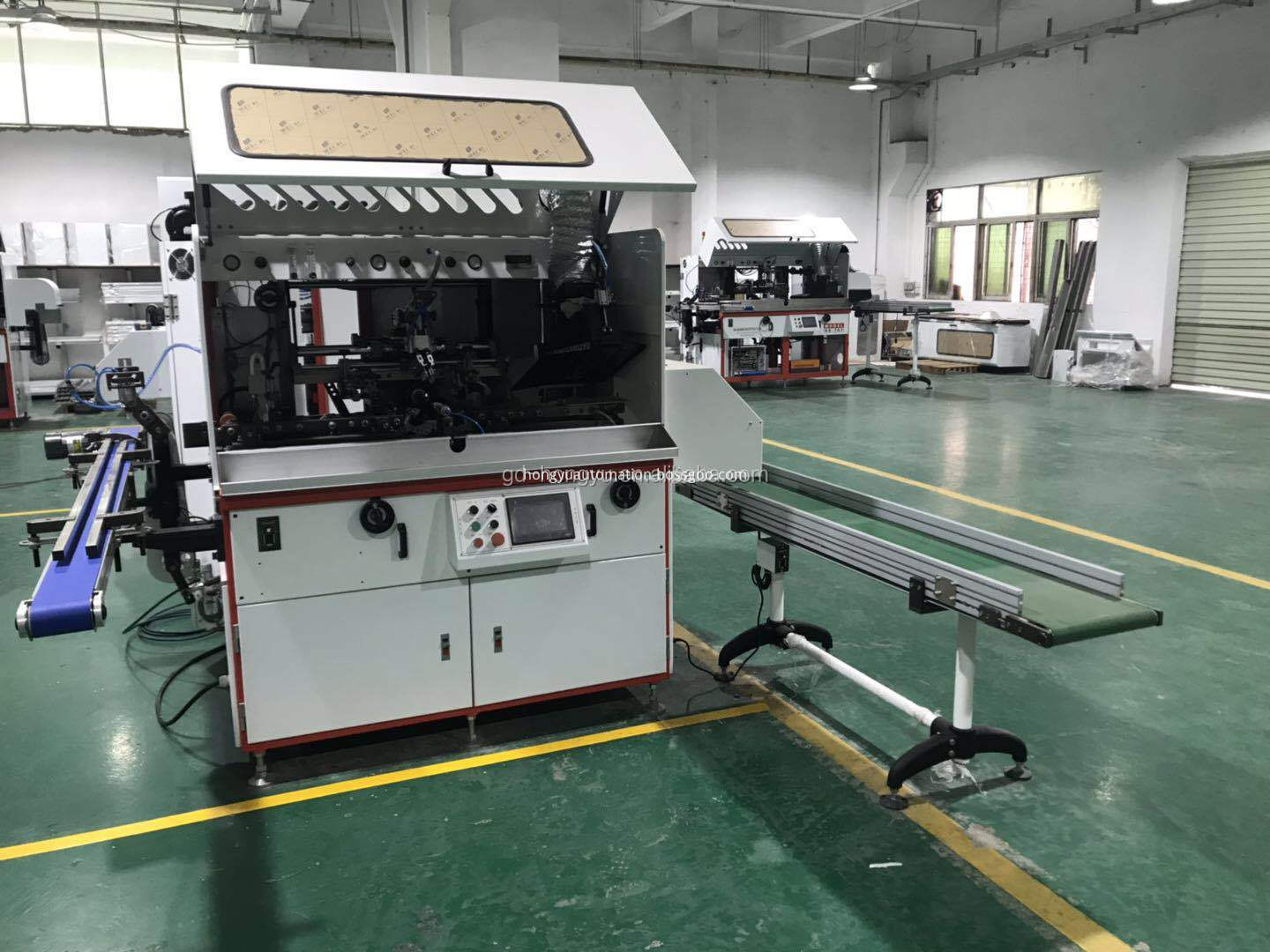

Details Images

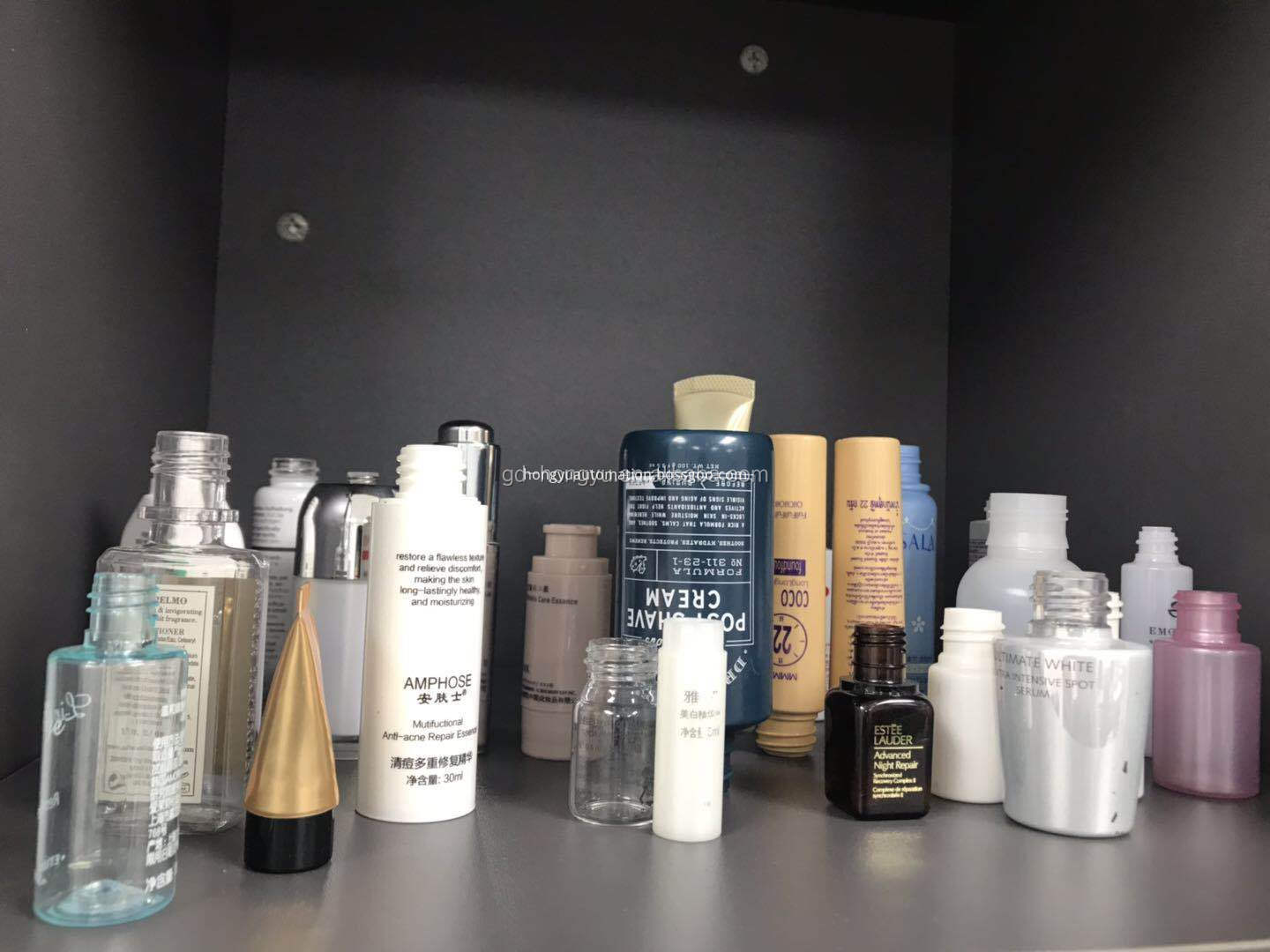

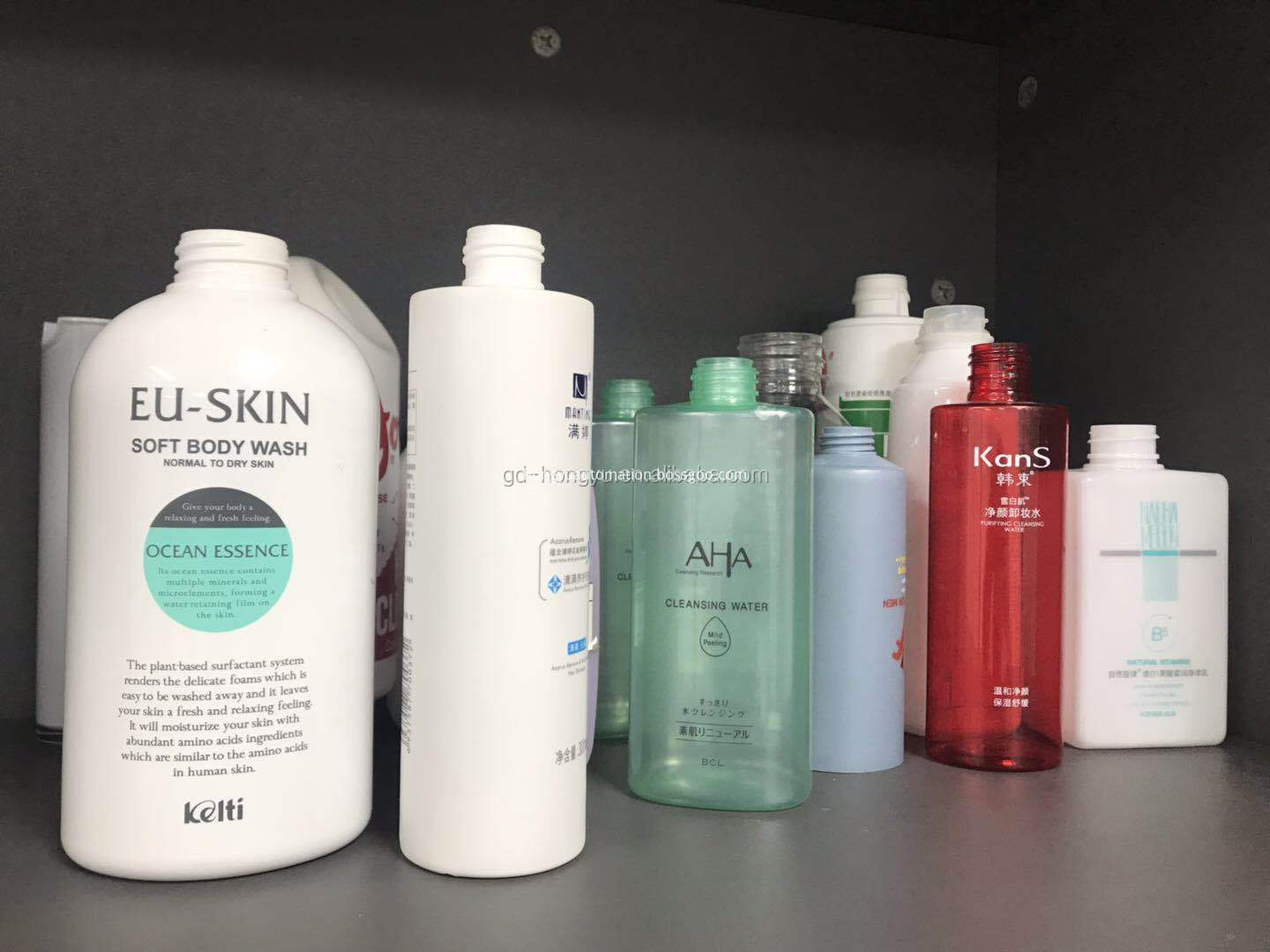

Printed samples
